SECTION 10-J 1952 BUICK WIRING DIAGRAMS
10-68 1952 BUICK CIRCUIT DIAGRAMS, INSPECTION HOLE, AND FUSE BLOCK
This Section contains all the necessary 1952 Buick wiring circuit diagrams for chassis and body. The 1952 Buick wiring may be easily traced by paying attention to the color code on each wire and the color code indicated on the diagrams.
Many of the 1952 Buick wiring connections use a flat push-pull type terminal. The terminal on the wire requires a straight hard push to seat it in the socket. A hard steady pull on the wire is required to detach the terminal from the socket.
An inspection hole located on left side of dash panel is closed by a cover attached with screws. Removal of this cover permits inspection and aids in working on wiring connections of instruments on instrument panel. When cover is reinstalled it should be well sealed with 3-M Autobody Sealer.
A central fuse block is mounted under the cowl near the steering column and to rear of the inspection hole in cowl. The 1952 Buick fuse block serves as a convenient junction point for a number of 1952 Buick wiring circuits, provides a mounting for the direction signal flasher, and contains the fuses shown in figure 10-108.
1952 Buick Fuse Block, With Direction Signals
The “Direction Signal” fuse also protects the stop light circuits. The “Dome Lamp” fuse also protects the luggage compartment and glove box lamp circuits.
1952 Buick Wiring Diagrams – Chassis
1952 Buick Chassis Wiring Circuit Diagram-Series 40 Without Direction Signals
1952 Buick Chassis Wiring Circuit Diagram-Series 40 With Direction Signals
1952 Buick Chassis Wiring Circuit Diagram-Series 50-70
1952 Buick Dome Lamp Wiring
1952 Buick Dome Lamp Wiring Circuit Diagram-Series 40
1952 Buick Dome Lamp Wiring Circuit Diagram-Models 56C, 56R, 76C, 76R

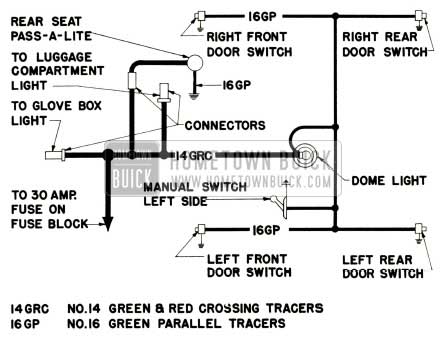

1952 Buick Dome Lamp Wiring Diagram-Models 52 and 72R
1952 Buick Wiring Diagrams – Body
1952 Buick Body Wiring Circuit Diagram-Models 41, 41 D-Styles 4369, 4369D
1952 Buick Body Wiring Circuit Diagram-Models 46, 465-Styles 43278, 4327
1952 Buick Body Wiring Circuit Diagram-Models 48, 48D-Styles 4311, 4311 D
1952 Buick Body Wiring Circuit Diagram-Model 56R-Style 4537
1952 Buick Body Wiring Circuit Diagram-Models 52, 72R-Styles 4519, 4719
1952 Buick Body and Hydro-Lectric Wiring Circuit Diagram-Models 52, 72R-Styles 4519X, 4719X
1952 Buick Body and Hydro-Lectric Wiring Circuit Diagram-Models 56C, 76C-Styles 4567X, 4767X
1952 Buick Body and Hydro-Lectric Wiring Circuit Diagram-Model 76R-Style 4737X
1952 Buick Body Wiring Circuit Diagram-Models 59, 79R-Styles 4581, 4781
