SECTION 3-C 1954 BUICK FUEL SYSTEM ADJUSTMENTS AND REPLACEMENTS-EXCEPT IN PUMP AND CARBURETOR ASSEMBLIES
3-7 1954 BUICK AIR CLEANER, GAS FILTER, AND MANIFOLD VALVE SERVICE
1954 Buick Air Cleaner Service
An air cleaner with a dirty element, or with oil that is dirty, too heavy, or too high in the reservoir will restrict the air flow to the carburetor and cause a rich mixture at all speeds. The device will not properly remove dirt from the air and the dirt entering the engine will cause abnormal formation of carbon, sticking valves, and wear of piston rings and cylinder bores.
Regular cleaning of the element and reservoir and re-filling with clean oil at 5000-mile intervals, or more frequently in dusty territory, is necessary to prevent excessive engine wear and abnormal fuel consumption. The procedure for cleaning and refilling the 1954 Buick air cleaner is given under Lubricare Instructions, paragraph 1-2.
1954 Buick Cleaning Gasoline Filter
The 1954 Buick gasoline filter located at carburetor inlet collects dirt and water. The drain plug at the bottom of the inlet side of filter should be removed occasionally to drain out the accumulation of dirt and water.
When a thorough cleaning is required, remove the filter, remove the drain plug and agitate the filter in Bendix Metaclene or its equivalent. Direct air stream through the outlet port of filter to force dirt from the inlet side of filtering disk. Rinse filter in kerosene, distillate, or white gasoline and again direct air stream through the outlet port. Install drain plug and reinstall filter.
Cleaning 1954 Buick Carburetor Gasoline Strainers
A fine mesh strainer is located in the carburetor inlet. This strainer should seldom require cleaning because of the gasoline filter which precedes it in the gasoline supply line. This strainer should be inspected however, if fuel supply at carburetor inlet is adequate but carburetor operation indicates lack of fuel.
On Carter carburetors the inlet strainer is located under the brass nut above the fuel inlet. On the 2-barrel carburetor it is necessary to remove the air horn in order to remove the nut and strainer. On all Stromberg carburetors it is necessary to remove the carburetor in order to reach the strainer, which is held in the inlet port in air horn by a small wire retainer clip.
Freeing Up Sticking 1954 Buick Exhaust Manifold Valve
Lubrication of the 1954 Buick exhaust manifold valve shaft every 1000 miles is specified in Lubricare Instructions (par. 1-1).
Carbon or lead salt deposits around the valve shaft may cause the valve to stick or become sluggish in operation. A valve sticking in the open position will cause slow engine warm up, excessive spitting and sluggish engine operation when cold. A valve sticking in the closed position will cause overheating, loss of power, and hard starting when the engine is hot, and may also cause warped or cracked manifolds. Sticking in either position will adversely affect fuel economy.
If the valve shaft is sticking or frozen in the manifold, free it up by tapping on the ends with a light hammer, and by rotating the counterweight. Penetrating oil or kerosene may be used to aid in freeing the shaft. When the valve shaft is free, apply a mixture of kerosene and powdered graphite liberally to the shaft bearing; the mixture to be composed of 2 1/2 ounces of powdered graphite to 1 pint of kerosene.
Checking Manifold Valve Thermostat Setting
The setting of the 1954 Buick exhaust manifold valve thermostat may be checked when the engine is at room temperature of approximately 70° F. Unhook the outer end of thermostat from anchor stud on the manifold and hold the valve in the closed position. To bring the end of thermostat to the anchor stud will then require approximately % turn wind-up of the thermostat as shown in figure 3-5.

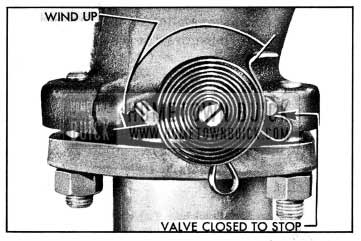

1954 Buick Valve Thermostat Wind-Up
The thermostat is not adjustable and should never be distorted or altered in any way as this will affect its calibration. If the thermostat does not have the proper setting, or is damaged, it should be replaced.
3-8 1954 BUICK CARBURETOR AND AUTOMATIC CHOKE ADJUSTMENTS
Carburetor adjustment should not be attempted until it is known that all items affecting engine Ignition and Compression are in good order, as outlined in paragraph 2-9. Any attempt to adjust or alter the carburetor to compensate for faulty conditions elsewhere in items affecting engine performance will result in reduced fuel economy and overall performance.
The two idle needle valves and the throttle stop screw are the only external means provided for adjusting the carburetor for engine performance. The idle needle valves control the idle or low speed system of the carburetor; all adjustments or calibrations affecting the high speed, power, and accelerating systems are accomplished during assembly of the carburetor.
Initial Setting of Idle Needle Valves and Throttle Stop Screw
- With engine stopped, turn both idle needle valves clockwise until they are lightly seated. Forcing valves hard against seats will score valves and seats and ruin them for proper adjustment.
- On Carter carburetor, turn each valve “OUT” (counter clockwise) one full turn. On Stromberg 2-barrel carburetor, turn each valve “OUT” 1 1/8 turns. On Stromberg 4-barrel carburetor, turn each valve “OUT” 1% turns. These settings provide an average starting adjustment.
- Back off throttle stop screw and hold fast idle cam in HOT (choke open) position so that throttle valves are fully closed.
- Turn throttle stop screw “IN” (clockwise) until it just contacts arm on throttle lever (Carter) or lowest step of fast idle cam (Stromberg), then turn stop screw “IN” one complete turn. This setting will give an engine idling speed of approximately 450 RPM.
Final Adjustment of Idle Needle Valves and Throttle Stop Screw
- With throttle stop screw and idle needle valves at the initial settings described above (subpar. a), start the engine and run it until it is at normal operating temperature.
- With engine at normal operating temperature and idling at 450 RPM, adjust one needle valve at a time (fig. 3-6) to provide smooth idle, as follows:
1954 Buick Adjustment of Idle Needle Valves
- Slowly turn needle valve “IN” (clockwise) until engine just begins to lag or run irregularly because of lean mixture.
- Slowly turn needle valve “OUT” until engine just begins to “roll” or “gallop” because of rich mixture.
- Slowly turn needle “IN” just enough to provide the smoothest engine operation.
- Repeat this same procedure on the other needle valve.
Final adjustment of the carburetor idle needle valves also may be made with the aid of combustion tester, tachometer, or vacuum gauge. When such instruments are used, be sure they are in good condition and are used in accordance with the instructions of the manufacturer.
Regardless of the methods or instruments used for making adjustments in the shop, the correctness of adjustment should be finally checked by a road test for smoothness at idling speed, power on acceleration, and freedom from sluggishness or fiat spots throughout entire speed range.
Checking Float Bowl Level
The sight hole in the float bowl may be used to check for proper fuel level in the bowl on all carburetors except the Carter 4-barrel carburetor. On this carburetor, the sight holes should be used only to check the float action.
With engine idling at normal operating temperature, remove plug from sight hole. The fuel will be just high enough to wet the threads at lower side of sight holes if the float is correctly adjusted. Securely install plug in sight hole after checking fuel level.
Automatic Choke Adjustments
The choke thermostat is calibrated to give satisfactory performance with regular blends of fuel when it is placed at the standard factory setting, which is at INDEX for all Series Carter and Stromberg carburetors. See figure 3-7.

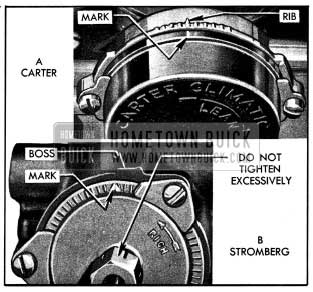

1954 Buick Choke Thermostat Settings
When it is necessary to adjust the thermostat loosen the housing or cover attaching screws and turn as required. On Stromberg choke it is also necessary to loosen the heat pipe connection to turn the cover. When tightening heat pipe connection after adjustment do not use excessive pressure, which may change position of thermostat cover.
Thermostat settings other than standard should be used only when the car is habitually operated on special blends of fuel which do not give satisfactory warm up performance with the standard setting. A “Lean” setting may be required with highly volatile fuel which produces excessive loading or rolling of engine on warm-up with the standard thermostat setting. A “Rich” setting should be used only when excessive spitting occurs on engine warm-up with the standard thermostat setting. When making either a “Lean” or “Rich” setting, change one point at a time and test results with engine cold, until the desired performance is obtained.
If the engine operates on fast idle too long after starting or else moves to slow idle too soon, or the choke unloader does not operate properly, check the fast idle and choke unloader adjustments as described in paragraph 3-17 (Carter) or paragraph 3-26 (Stromberg).
3-9 1954 BUICK THROTTLE LINKAGE AND DASH POT ADJUSTMENTS
The 1954 Buick throttle linkage must work freely and be adjusted so that the accelerator pedal can move the throttle valve smoothly from fully closed to wide open positions. When pedal is pressed down against floor mat the throttle must fully open to the throttle stop on carburetor, and the choke unloader must be operated in the wide open position. When pedal is released, the throttle must close against the throttle stop screw; on Dynaflow cars the dash pot must govern the closing to prevent stalling or rolling of the engine.
1954 Buick Throttle Linkage Adjustment
- Make sure that accelerator pedal is in good condition and that the floor mat is properly installed, then tighten the pedal mounting screws.
- Check throttle linkage for proper lubrication, make sure that pedal rod does not bind in its seal, and make sure that the return spring is strong enough to fully close the throttle valve.
- Adjust throttle stop screw for proper HOT idling speed of 450 RPM if necessary (par. 3-8).
- With engine shut off and throttle closed to hot idling position, check clearance between the equalizer shaft lower lever and the stop lug on the shaft-to-cowl mounting bracket. This clearance should be approximately 1/16″. See figure 3-8.
1954 Buick Throttle Linkage Adjustments
In some cases it may be necessary to remove the upper lever from the serrated end of the shaft and reinstall it in a new position.
- Hold choke valve closed and check for proper operation of choke unloader when accelerator is pressed to floor mat. If choke unloader does not operate properly, adjust as described in paragraph 3-17 (Carter) or 3-26 (Stromberg).
- Finally, check for smooth operation of linkage from fully closed to wide open position of throttle valve. In closed position, the throttle operating rod must be at sufficient angle to the shaft upper level to provide positive operation of the throttle valves when accelerator pedal is first pressed.
1954 Buick Dash Pot Adjustment
Adjust the 1954 Buick dash pot only after the throttle linkage has been adjusted as described above (subpar. a) and engine is at normal operating temperature.
- Rotate fast idle cam to extreme COLD idle (choke closed) position and hold the throttle lever closed against a .030″ feeler gauge placed between the stop screw and the highest step of fast idle cam. See figure 3-9.
1954 Buick Dash Pot Adjustment
3-10 REPLACEMENT OF 1954 BUICK GASOLINE TANK OR FILLER
When removing the 1954 Buick gasoline tank, disconnect feed pipe from gasoline gauge pipe, support the tank, while disconnecting support straps at rear ends, then lower tank far enough to disconnect the wire from 1954 Buick gasoline gauge.
When installing 1954 Buick gasoline tank by reversing procedure for removal, make sure that all road dirt is cleaned from gasoline gauge and wire terminal; also make sure that wire is securely attached to gauge and that insulation is folded over the terminal and snapped over the wire. An accumulation of road dirt around the gauge terminal may permit an electrical leak that will affect the accuracy of the gauge. Insulating strips must be located between the tank and the upper supports on body.
The 1954 Buick gasoline tank and the filler are furnished separately so that they may be replaced if damaged. After unsoldering the old parts, the new filler should be installed in gasoline tank in accordance with the dimensions given in figure 3-10. Joints must be thoroughly soldered and should be tested for leaks with gasoline before installing gasoline tank.

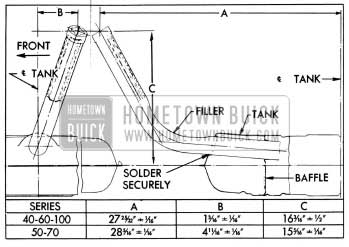

1954 Buick Location Dimensions for Installing Gasoline Tank Filler
