SECTION 10-J 1956 BUICK WIRING DIAGRAMS
10-59 1956 BUICK CIRCUIT DIAGRAMS AND FUSE BLOCK
This Section contains 1956 Buick wiring diagrams for chassis and body. The 1956 Buick wiring may be easily traced by paying attention to the color code on each wire and the color code indicated on the diagrams.
Many of the 1956 Buick wiring connections use a flat push-pull type terminal. The terminal on the wire requires a straight hard push to seat it in the socket. A hard steady pull on the wire is required to detach the terminal from the socket.
A central fuse block is mounted under the cowl on the left side. The 1956 Buick fuse block serves as a convenient junction point for a number of wiring circuits, provides a mounting for the direction signal flasher, and contains the fuses shown in figure 10-78.
1956 Buick Fuse Block
The “Direction Signal” fuse also protects the stop light circuits. The “Dome Lamp” fuse also protects the luggage compartment lamp circuit.
1956 BUICK WIRING DIAGRAMS – CHASSIS
1956 Buick Chassis Wiring Diagram – Synchromesh Transmission
1956 Buick Chassis Wiring Diagram – Dynaflow Transmission
1956 BUICK WIRING DIAGRAMS – BODY
1956 Buick Body Wiring Circuit Diagram-Model 41-Style 4469
1956 Buick Body Wiring Circuit Diagram-Models 43, 63-Styles 4439, 4639
1956 Buick Body Wiring Circuit Diagram-Model 46C-Style 4467TX
1956 Buick Body Wiring Circuit Diagram-Models 46R, 66R-Styles 4437, 4637
1956 Buick Body Wiring Circuit Diagram-Model 48-Style 4411
1956 Buick Body Wiring Circuit Diagram-Models 49, 69
1956 Buick Body Wiring Circuit Diagram-Model 66C-Style 4667X
1956 Buick Body Wiring Circuit Diagram-Models 52, 72-Styles 4519, 4719
1956 Buick Body Wiring Circuit Diagram-Models 53, 73-Styles 4539, 4739X
1956 Buick Body Wiring Circuit Diagram-Models 56C, 76C-Styles 4567X, 4767X
1956 Buick Body Wiring Circuit Diagram-Model 56R-Style 4537

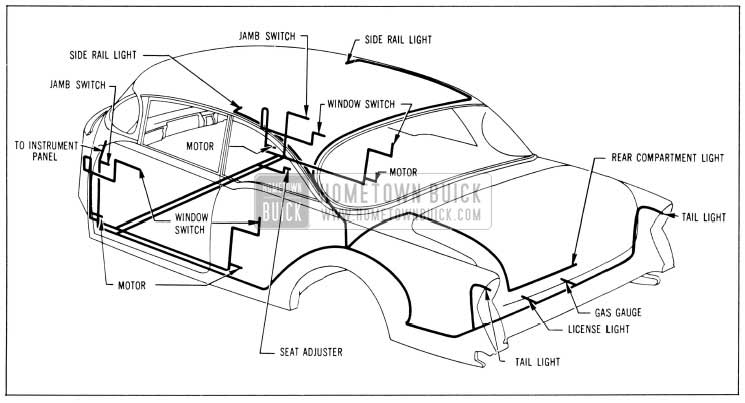

1956 Buick Body Wiring Circuit Diagram-Model 76R-Style 4737X
1956 BUICK WIRING DIAGRAMS – DOME LAMP
1956 Buick Dome Lamp Wiring Circuit Diagram-Series 40-60
1956 Buick Dome Lamp Wiring Circuit Diagram-Models 56C, 56R, 76C, 76R
1956 Buick Dome Lamp Wiring Circuit Diagram-Models 52, 53, 72, 73
1956 BUICK WIRING DIAGRAMS – AIR CONDITIONER
1956 Buick Air Conditioning Wiring Information
