SECTION 10-J 1955 BUICK WIRING DIAGRAMS
10-59 1955 BUICK CIRCUIT DIAGRAMS AND FUSE BLOCK
This Section contains 1955 Buick wiring diagrams for chassis and body. The 1955 Buick wiring may be easily traced by paying attention to the color code on each wire and the color code indicated on the diagrams.
Many of the 1955 Buick wiring connections use a flat push-pull type terminal. The terminal on the wire requires a straight hard push to seat it in the socket. A hard steady pull on the wire is required to detach the terminal from the socket.
A central fuse block is mounted under the cowl on the left side. The 1955 Buick fuse block serves as a convenient junction point for a number of wiring circuits, provides a mounting for the direction signal flasher, and contains the fuses shown in figure 10-74.

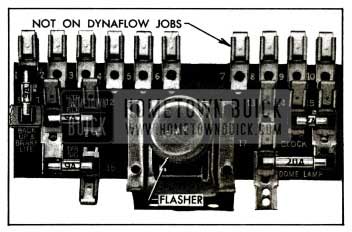

1955 Buick Fuse Block
The “Direction Signal” fuse also protects the stop light circuits. The “Dome Lamp” fuse also protects the luggage compartment and glove box lamp circuits.
1955 BUICK WIRING DIAGRAMS – CHASSIS
1955 Buick Chassis-All Series Synchromesh Transmission

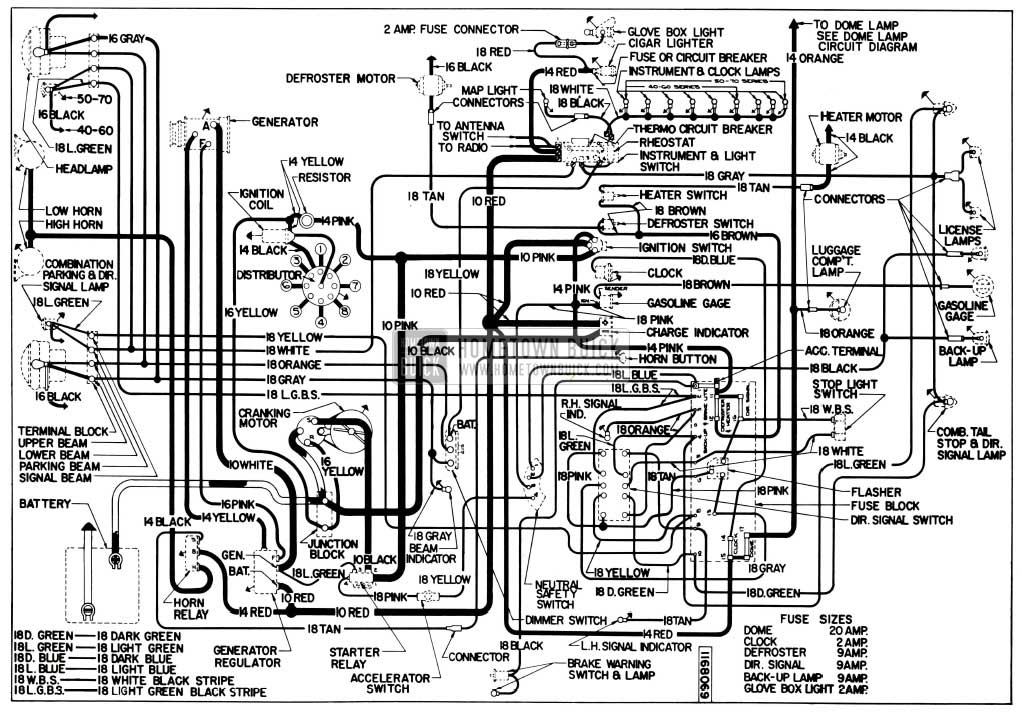

1955 Buick Chassis-All Series Dynaflow Transmission
1955 BUICK DOME LAMP WIRING DIAGRAM
1955 Buick Dome Lamp Wiring Circuit Diagram-Series 40-60
1955 Buick Dome Lamp Wiring Circuit Diagram-Models 56C, 56R, 76C, 76R

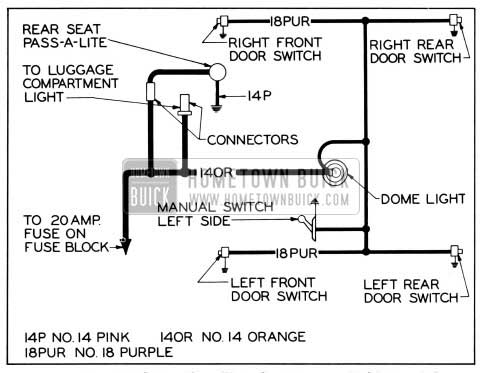

1955 Buick Dome Lamp Wiring Circuit Diagram-Models 52 and 72
1955 BUICK WIRING DIAGRAMS – BODY
1955 Buick Body Wiring Circuit Diagram-Model 41-Style 4469

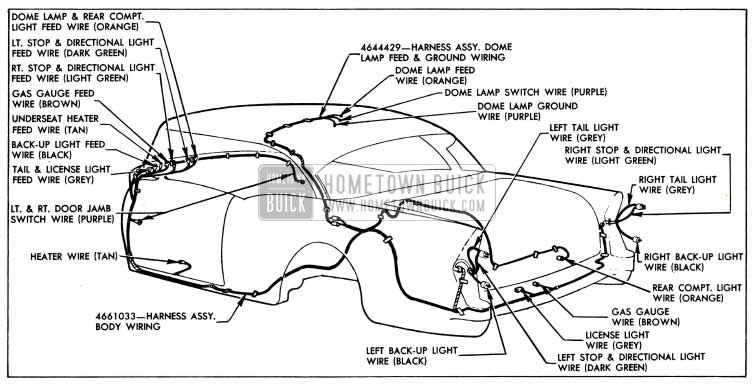

1955 Buick Body Wiring Circuit Diagram-Models 46R, 66R-Styles 4437, 4637

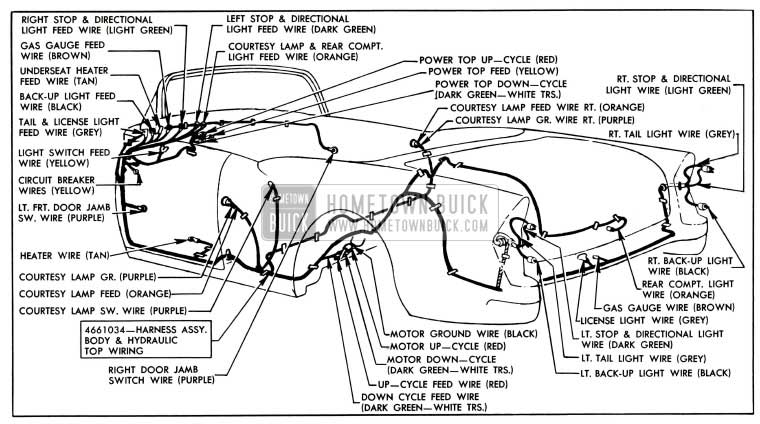

1955 Buick Body Wiring Circuit Diagram-Model 46C-Style 4467TX
1955 Buick Body Wiring Circuit Diagram-Model 48-Style 4411

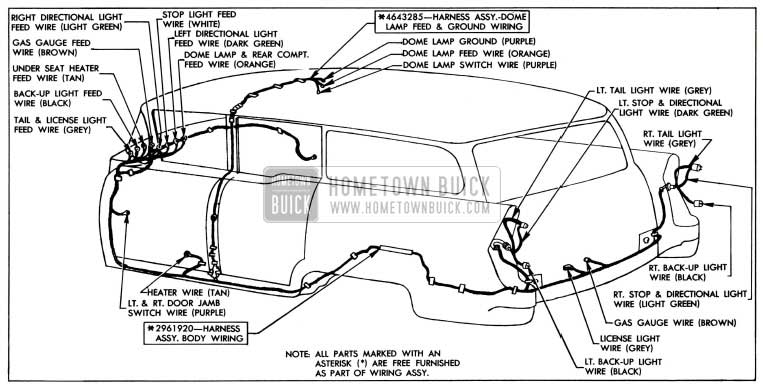

1955 Buick Body Wiring Circuit Diagram-Models 49, 69-Style 4481
1955 Buick Body Wiring Circuit Diagram-Models 52, 72-Styles 4519,4719

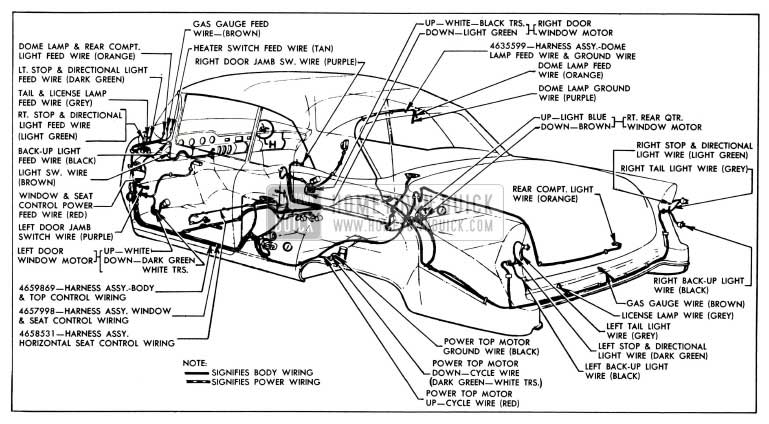

1955 Buick Body Wiring Circuit Diagram-Models 56C, 76C-Styles 4567X, 4767X

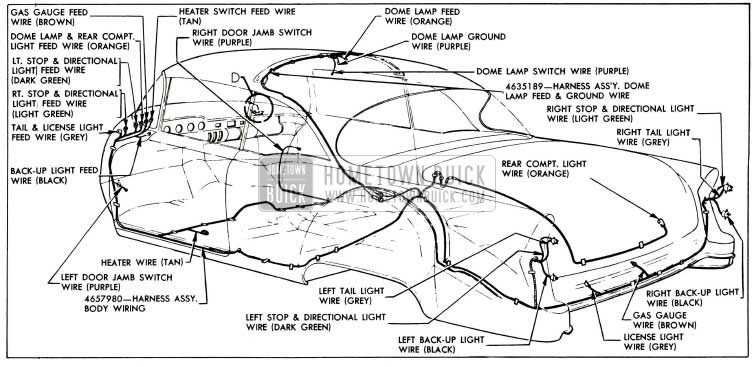

1955 Buick Body Wiring Circuit Diagram-Model 56R-Style 4537

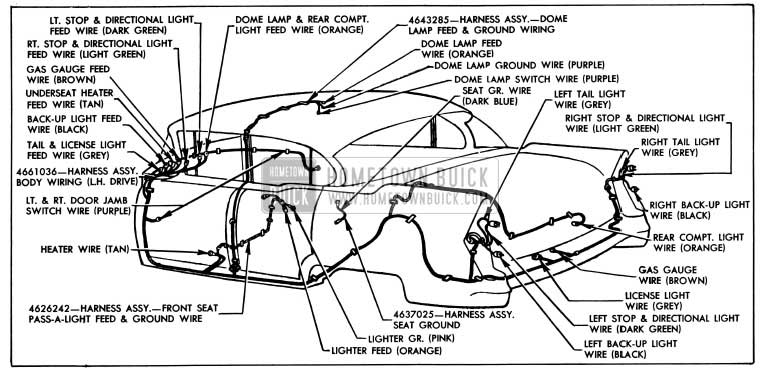

1955 Buick Body Wiring Circuit Diagram-Model 61-Style 4669
1955 Buick Body Wiring Circuit Diagram-Model 66C-Style 4667TX
1955 Buick Body Wiring Circuit Diagram-Model 76R-Style 4737X
1955 BUICK AIR CONDITIONING WIRING DIAGRAM
1955 Buick Air Conditioner Wiring Circuit Diagram
