1957 Buick Rear Quarter (Series 40-60)

1957 Buick Rear Quarter Window Installation

Removal and Installation of 1957 Buick Rear Quarter Window (Manual and Electric) (Model 46R-66R)

1. Remove 1957 Buick rear quarter arm rest and trim assembly and belt finishing molding.
2. Remove access hole cover.
3. With window in “up” position, remove rear guide attaching screws and remove rear guide.
4. Carefully lower window to disengage regulator lift arm from window lower sash channel.
5. Disconnect battery positive cable.
6. Disengage window front roller from front guide and remove window from body.
7. To install, reverse removal procedure. See Figure 13-75.

1957 Buick Rear Quarter Window Installation and Removal

Adjustment of 1957 Buick Rear Quarter Window (Manual and Electric) (Model 46R)

1. Remove 1957 Buick rear quarter arm rest and trim assembly.
2. To adjust rear quarter window “fore or aft”: loosen front and rear guide attaching screws; adjust quarter window as desired and tighten guide attaching screws.
3. To adjust rear quarter window “in or out” at lock pillar: loosen front guide upper attaching nut, turn adjusting stud in or out as desired and tighten attaching nut.
4. To adjust rear quarter window “up” travel when upper travel limits are reached: loosen “up” attaching screw, adjust stop as desired and tighten attaching screw.
5. Remove access hole cover. To adjust 1957 Buick rear quarter window “down” travel when lower travel limits are reached: loosen “down” stop attaching screw at lower area of front guide; adjust “down” stop as desired, and tighten attaching screw. See Figure 13-75.

Removal and Installation of 1957 Buick Rear Quarter Window (Manual and Electric) (Convertibles)

1. Remove rear seat cushion and seat back, then lower folding top.
2. Regulate window to half-down position. On cars with power windows, disconnect battery positive cable to prevent accidental operation of quarter window.
3. Remove 1957 Buick rear quarter belt finishing molding, folding top compartment side trim panel, and inside handle on manual cars.
4. Swing rear quarter trim panel from rear quarter inner panel to gain access to pivot bolt and remove pivot bolt.
5. Remove access hole cover.
6. Disengage window male hinge from female hinge plate lifting front of window. Then raise window to disconnect lower sash channel cam from window regulator and remove window.
7. To install, reverse removal procedure.

CAUTION: Do not operate regulator motor after window is disengaged from regulator. Operation of motor with load removed may damage unit.

Adjustment of 1957 Buick Rear Quarter Window (Manual and Electric) (Convertibles)

1. Remove folding top compartment side trim panel and turn trim panel away from inner panel to gain access to pivot bolt and adjusting studs.
2. To adjust 1957 Buick rear quarter window “up or down” or “fore or aft”, loosen pivot bolt and adjusting stud nuts. Position window where desired and tighten pivot bolt and adjusting stud nuts.
3. To adjust top of quarter window “in or out” when raised: loosen pivot bolt and adjusting nuts; turn lower adjusting stud in or out until the desired adjustment is attained; and tighten bolt and nuts. ‘
4. To adjust rear of quarter window “in or out” when lowered: loosen pivot bolt and adjusting nuts; turn rear adjusting stud in or out until the desired adjustment is attained; and tighten bolts and nuts.
5. To adjust quarter window “up” travel when upper travel limits are reached: loosen “up” stop attaching screws; move stop up or down as desired; and tighten stop attaching screws.

In connection with preceding adjustments, it may be necessary to adjust rear quarter window guide. To adjust guide: loosen guide upper, center and /or lower attachments; adjust guide to desired location and tighten guide attachments. See Figure 13-76.

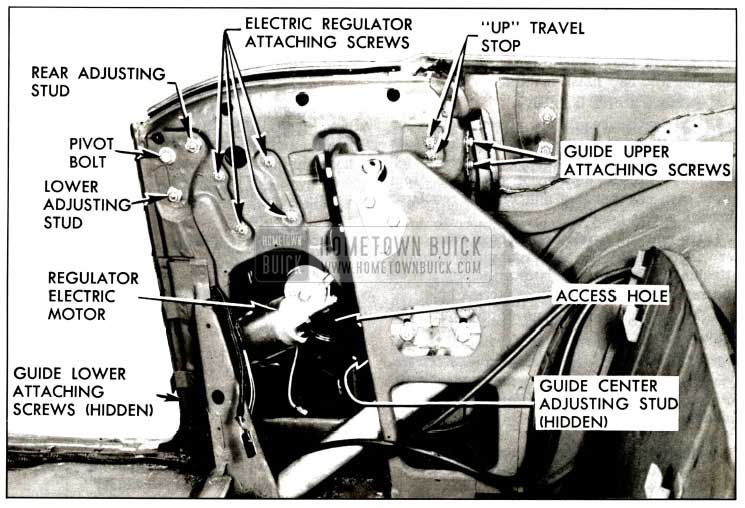

1957 Buick Rear Quarter Window Installation and Removal Procedure

Removal and Installation of 1957 Buick Rear Quarter Window Regulator (Manual and Electric) (Models 46R-66R)

1. Remove 1957 Buick rear quarter arm rest and trim assembly and belt finish molding.
2. Remove access hole cover.
3. On electric regulators, disconnect motor leads from wire harness. Disconnect front guide at lower attachment. Remove regulator attaching screws, disconnect regulator from lower sash channel cam and remove regulator through access hole.
4. On manual regulators, remove 1957 Buick rear quarter window and disconnect front guide at upper attachment. Remove regulator attaching screws and remove regulator through access hole.
5. To install, reverse removal procedure. See Figure 13-75.

NOTE: The procedure for removing the electric motor from the rear quarter window regulator is the same as outlined for the front door window electric regulator.

Removal and Installation of 1957 Buick Rear Quarter Window Regulator (Manual and Electric) (Convertibles)

1. Remove 1957 Buick rear quarter window.
2. On cars with electric regulators, disconnect motor leads from wire harness.
3. Remove regulator attaching screws and remove regulator through access hole.
4. To install, reverse removal procedure. See Figure 13-76.

NOTE: The procedure for removing the electric motor from the rear quarter window regulator is the same as outlined for the front door window regulator.

Removal and Installation of 1957 Buick Rear Quarter Window Regulator (Model 48)

1. Remove 1957 Buick rear quarter trim and arm rest assembly.
2. Remove access hole cover.
3. Remove regulator cam to lower sash channel attaching screws.
4. Prop glass in full up position.
5. Remove rear quarter inner panel cam.
6. Remove rear quarter window regulator attaching screws and remove regulator and regulator cover plate.
7. To install, reverse removal procedure. See Figure 13-74.

Removal and Installation of 1957 Buick Rear Quarter Window Front Guide (Modei46R-66R)

1. Remove 1957 Buick rear quarter window.
2. Remove rear quarter window front guide upper attaching nut and lower attaching screws and carefully remove front guide from body through access hole.
3. To install, reverse removal procedure. See Figure 13-75.

Removal and Installation of 1957 Buick Rear Quarter Window Rear Guide (Model 46R-66R)

1. Remove rear quarter arm rest and trim assembly and belt finish molding.
2. Remove access hole cover.
3. With rear quarter window in full “UP” position, remove rear quarter window rear guide attaching screws and remove rear guide.
4. To install, reverse removal procedure. See Figure 13-75.

Removal and Installation of 1957 Buick Rear Quarter Window Guide (Convertibles)

1. Remove rear quarter window.
2. Remove guide attaching screws at upper and lower attaching points. Lower guide and remove through access hole.
3. To install, reverse removal procedure. See Figure 13-76.

Removal and Installation of 1957 Buick Rear Quarter Window Glass Run Channel-Upper and Front (Model 48)

1. Remove 1957 Buick rear quarter belt finishing molding and garnish molding.
2. Lower rear quarter window and remove lower attaching screw from upper glass run channel.
3. Use a flat bladed tool to disconnect upper glass run channel retaining clips.
4. Pull upper glass run channel forward to disconnect channel from lower attachment and remove from body.
5. Remove lower attaching screw from front glass run channel and disconnect channel retaining clips.
6. Pull front glass run channel upward to disconnect channel from lower attachment and remove from body.
7. To install, reverse removal procedure. See Figure 13-74. Check for proper installation of run channel in “slide in” type retainer at lower end.

Removal and Installation of 1957 Buick Rear Quarter Window Sealing Strip (Models 46R-66R)

1. Remove 1957 Buick rear quarter belt finishing molding.
2. Remove sealing strip attaching screws.
3. Carefully loosen front end of sealing strip downward with flat bladed tool and pull sealing strip forward to remove from body.
4. To install, reverse removal procedure. Seal quarter window sealing strip by applying 3/16″ diameter ribbon of heavy-bodied sealer to top surface of sealing strip along outboard side of attaching holes prior to installation. At front end, seal is to be diverted inboard along front edge.

Adjustment of 1957 Buick Rear Quarter Window Sealing Strip (Models 46R-66R)

The 1957 Buick rear quarter window sealing strip attaching holes are over-sized to permit “in and out” and “fore and aft” adjustment. To adjust, loosen attaching screws and adjust as required; then tighten screws. See Figure 13-75.

1957 Buick Rear Quarter Inner Panel Sealing Procedure (Model48)

Whenever any of the rear quarter inner panel seals are disturbed during service operations, it is very important that the affected areas be re-sealed properly before installation of trim parts.

Each numbered step in the sealing procedure below refers to the corresponding numbered arrow in the illustration. See Figure 13-77.

1957 Buick Rear Quarter Inner Panel Sealing-Model 48

1. Apply medium-bodied sealer along top and side joints of access hole cover to inner panel. Give special attention to lower corner offsets indicated by arrows marked “X”.
2. Apply medium-bodied sealer along entire joint of regulator cover plate to inner panel and over heads of cover plate attaching screws to effect a watertight assembly.
3. Apply body caulking compound to inner panel cam attaching holes.
4. Apply body caulking compound to opening at joint of rear quarter outer panel and lower forward corner of 1957 Buick rear quarter inner panel.
5. , 6 and 7. Apply waterproof body tape over access holes as shown.

1957 Buick Rear Quarter Panel Sealing Procedure (Models 46R-66R)

Each numbered step in the sealing procedure below refers to the corresponding numbered arrow in the illustration. See Figure 13-78.

1957 Buick Rear Quarter Inner Panel Sealing-Models 46R-66R

3. 1, 2 and 3. Apply waterproof body tape over access holes as shown. On manual window cars, apply weatherstrip cement over exposed surface of regulator spindle hole sealing washer to seal pores of sponge rubber and joint between inner panel and washer.
4. On electric window cars, apply medium-bodied sealer around grommet and around electric wire at grommet to seal between grommet and inner panel and between wire and grommet. On manual window cars, seal this opening with waterproof body tape.
5. Apply body caulking compound to seal window guide attaching holes.
6. Apply body caulking compound to seal window guide rear attaching holes.
7. Apply body caulking compound to seal window guide front attaching slot.
8. Apply body caulking compound to seal manual window regulator attaching holes.
9. Apply body caulking compound to seal electric wiring clip attaching holes.
10. After assembly of access hole cover apply medium-bodied sealer completely around joint of cover and inner panel to effect a watertight seal.

1957 Buick Rear Quarter Inner Panel Sealing Procedure (Convertibles)

Each numbered step in the sealing procedure below refers to the corresponding numbered arrow in the illustration. See Figure 13-79.

1957 Buick Rear Quarter Inner Panel Sealing-Convertibles

1. and 2. Apply waterproof body tape over access holes as shown.
2. Use weatherstrip cement to cement rear belt rail trim stick fillers to body. Seal around trim stick attaching holes with cement before installing fillers.
3. Apply body caulking compound to seal window regulator attaching holes.
4. On manual window cars, apply weatherstrip cement to exposed surface of regulator spindle hole sealing washer. Cement is required to seal pores of sponge rubber and joint between inner panel and washer.
5. On electric window cars, apply waterproof body tape over window regulator spindle hole.
6. Apply body caulking compound to seal 1957 Buick rear quarter window upper stop attaching slots.
7. Apply body caulking compound to seal electric window regulator attaching holes.
8. Apply body caulking compound to seal window guide and wiring clip attaching holes.
9. On manual window cars, apply medium-bodied sealer to seal joint between sealing plug and inner panel.
10. On electric window cars, apply medium-bodied sealer to seal joints between grommet and inner panel and between wire and grommet.
11. Apply medium-bodied sealer along top and side joints of access hole cover to inner panel. Use care to seal offset at lower corners indicated by arrows marked “X.”
12. Prior to installation of trim stick support assembly, apply body caulking compound over attaching holes in gutter.
13. Apply medium-bodied sealer to seal joints of access hole cover and inner panel below offset at lower corners. This seal should be completed before performing sealing operation, number 10, above.
