SECTION 10-J 1954 BUICK WIRING CIRCUIT DIAGRAMS
10-59 1954 BUICK CIRCUIT DIAGRAMS AND 1954 BUICK FUSE BLOCK
This Section contains 1954 Buick wiring diagrams for chassis and body. The 1954 Buick wiring may be easily traced by paying attention to the color code on each wire and the color code indicated on the diagrams.
Many of the wiring connections use a fiat push-pull type terminal. The terminal on the wire requires a straight hard push to seat it in the socket. A hard steady pull on the wire is required to detach the terminal from the socket.
A central fuse block is mounted under the cowl on the left side. The 1954 Buick fuse block serves as a convenient junction point for a number of wiring circuits, provides a mounting for the direction signal flasher, and contains the fuses showing figure 10-88.

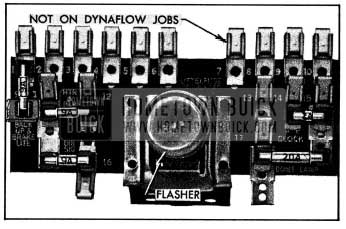

1954 Buick Fuse Block
The “Direction Signal” fuse also protects the stop light circuits. The “Dome Lamp” fuse also protects the luggage compartment and glove box lamp circuits.
1954 BUICK WIRING DIAGRAMS – CHASSIS
1954 Buick Chassis Wiring Diagram-All Series Synchromesh
1954 Buick Chassis Wiring Diagram-All Series Dynaflow
1954 BUICK DOME LAMP WIRING DIAGRAMS
1954 Buick Dome Lamp Wiring Circuit Diagram-Series 40-60

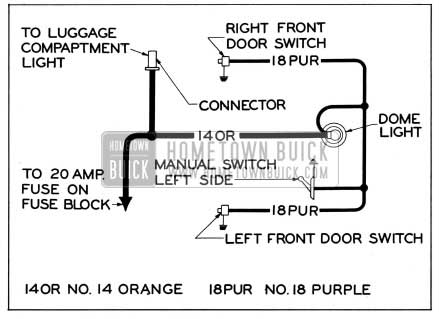

1954 Buick Dome Lamp Wiring Circuit Diagram-Models 56C, 56R, 76C, 76R
1954 Buick Dome Lamp Wiring Circuit Diagram-Models 52 and 72R
1954 BUICK AIR CONDITIONER WIRING DIAGRAM
1954 Buick Air Conditioner Wiring Circuit Diagram
1954 BUICK POWER BRAKE WIRING DIAGRAM
1954 Buick Power Brake Vacuum Pump Wiring Circuit Diagram
1954 BUICK WIRING DIAGRAMS – BODY
1954 Buick Body Wiring Circuit Diagram-Model 41D-Style 4469D
1954 Buick Body Wiring Circuit Diagram-Models 46R, 66R-Styles 4437, 4637
1954 Buick Body Wiring Circuit Diagram-Model 46C-Style 4467TX

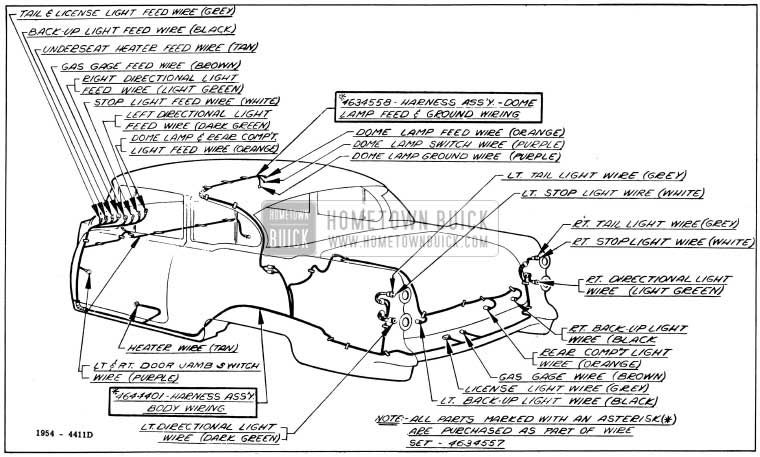

1954 Buick Body Wiring Circuit Diagram-Model 48D-Style 4411D
1954 Buick Body Wiring Circuit Diagram-Models 49, 69-Style 4481
1954 Buick Body Wiring Circuit Diagram-Models 52, 72R-Styles 4519, 4719
1954 Buick Body Wiring Circuit Diagram-Model 56C-Style 4567TX

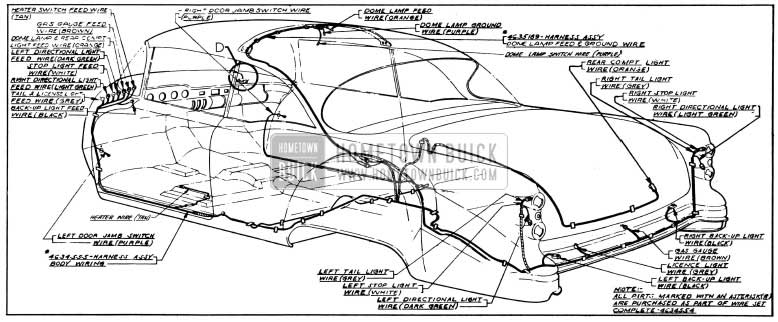

1954 Buick Body Wiring Circuit Diagram-Model 56R-Style 4537
1954 Buick Body Wiring Circuit Diagram-Model 61-Style 4669
1954 Buick Body Wiring Circuit Diagram-Models 66C, 100-Style 4667SX
1954 Buick Body Wiring Circuit Diagram-Model 76C-Style 4767X
1954 Buick Body Wiring Circuit Diagram-Model 76R-Style 4737X
1954 BUICK POWER SYSTEMS WIRING DIAGRAM
1954 Buick Window and Seat Adjuster Wiring Circuit Diagram
1954 Buick Window, Seat Adjuster, and Top Wiring Circuit Diagram
