SECTION 10-J 1953 BUICK WIRING DIAGRAMS

10-59 1953 BUICK WIRING DIAGRAMS, INSPECTION HOLE, AND FUSE BLOCK

This Section contains all the necessary 1953 Buick wiring diagrams for chassis and body. The 1953 Buick wiring may be easily traced by paying attention to the color code on each wire and the color code indicated on the diagrams.

Many of the 1953 Buick wiring connections use a flat push-pull type terminal. The terminal on the wire requires a straight hard push to seat it in the socket. A hard steady pull on the wire is required to detach the terminal from the socket.

An inspection hole located on left side of dash panel is closed by a cover attached with screws. Removal of this cover permits inspection and aids in working on wiring connections of instruments on instrument panel. When cover is reinstalled it should be well sealed with 3-M Autobody Sealer.

A central fuse block is mounted under the cowl near the steering column and to rear of the inspection hole in cowl. The 1953 Buick fuse block serves as a convenient junction point for a number of 1953 Buick wiring circuits, provides a mounting for the direction signal flasher, and contains the fuses shown in figure 10-87.

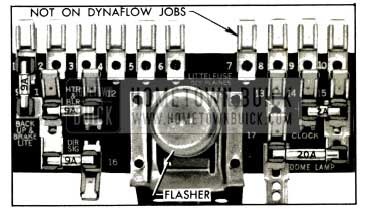

1953 Buick Fuse Block

1953 Buick Fuse Block

The “Direction Signal” fuse also protects the stop light circuits. The “Dome Lamp” fuse also protects the luggage compartment and glove box lamp circuits.

1953 Buick Chassis Wiring Circuit Diagram-Series 40

1953 Buick Chassis Wiring Circuit Diagram-Series 40

1953 Buick Chassis Wiring Circuit Diagram-Series 50 Synchromesh Transmission

1953 Buick Chassis Wiring Circuit Diagram-Series 50 Synchromesh Transmission

1953 Buick Chassis Wiring Circuit Diagram-Series 50-70 Dynaflow Transmission

1953 Buick Chassis Wiring Circuit Diagram-Series 50-70 Dynaflow Transmission

1953 Buick Dome Lamp Wiring Circuit Diagram-Series 40

1953 Buick Dome Lamp Wiring Circuit Diagram-Series 40

1953 Buick Dome Lamp Wiring Circuit Diagram-Models 56C, 56R, 76C, 76R

1953 Buick Dome Lamp Wiring Circuit Diagram-Models 56C, 56R, 76C, 76R

1953 Buick Dome Lamp Wiring Circuit Diagram-Models 52 and 72R

1953 Buick Dome Lamp Wiring Circuit Diagram-Models 52 and 72R

1953 Buick Body and Hydro-Lectric Wiring Circuit Diagram Model 46C-Style 4367X

1953 Buick Body and Hydro-Lectric Wiring Circuit Diagram Model 46C-Style 4367X

1953 Buick Body Wiring Circuit Diagram-Model 56 R- Style 4537

1953 Buick Body Wiring Circuit Diagram-Model 56 R- Style 4537

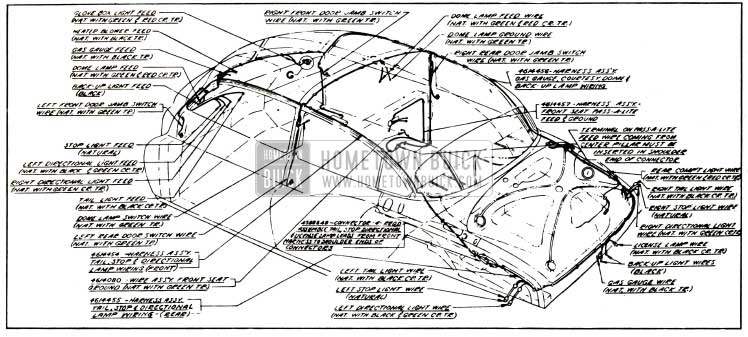

1953 Buick Body Wiring Circuit Diagram-Models 52, 72R - Styles 4519, 4719

1953 Buick Body Wiring Circuit Diagram-Models 52, 72R – Styles 4519, 4719

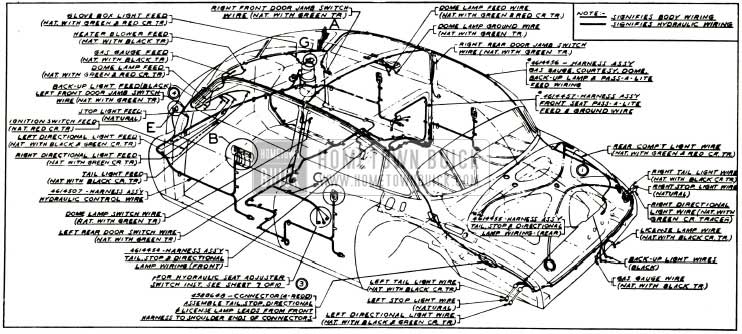

1953 Buick Body and Hydro-Lectric Wiring Circuit Diagram Models 52, 72R-Styles 4519X, 4719X

1953 Buick Body and Hydro-Lectric Wiring Circuit Diagram Models 52, 72R-Styles 4519X, 4719X

1953 Buick Body and Hydro-Lectric Wiring Circuit Diagram Model 76R-Style 4737X

1953 Buick Body and Hydro-Lectric Wiring Circuit Diagram Model 76R-Style 4737X

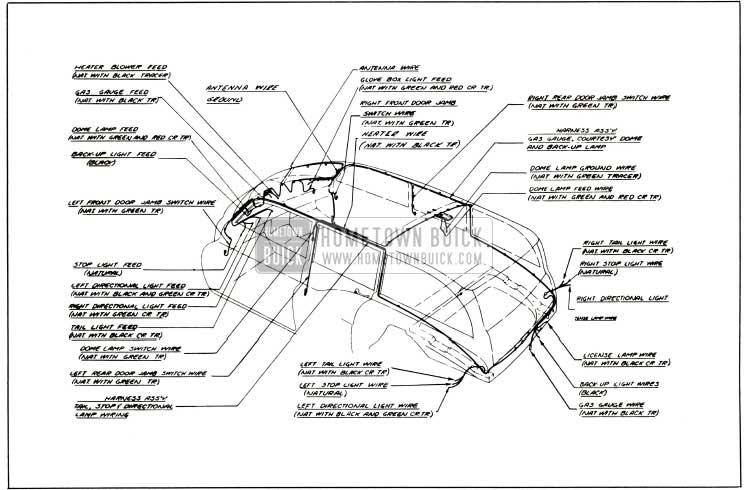

1953 Buick Body Wiring Circuit Diagram-Models 59, 79R - Styles 4581, 4781

1953 Buick Body Wiring Circuit Diagram-Models 59, 79R – Styles 4581, 4781
